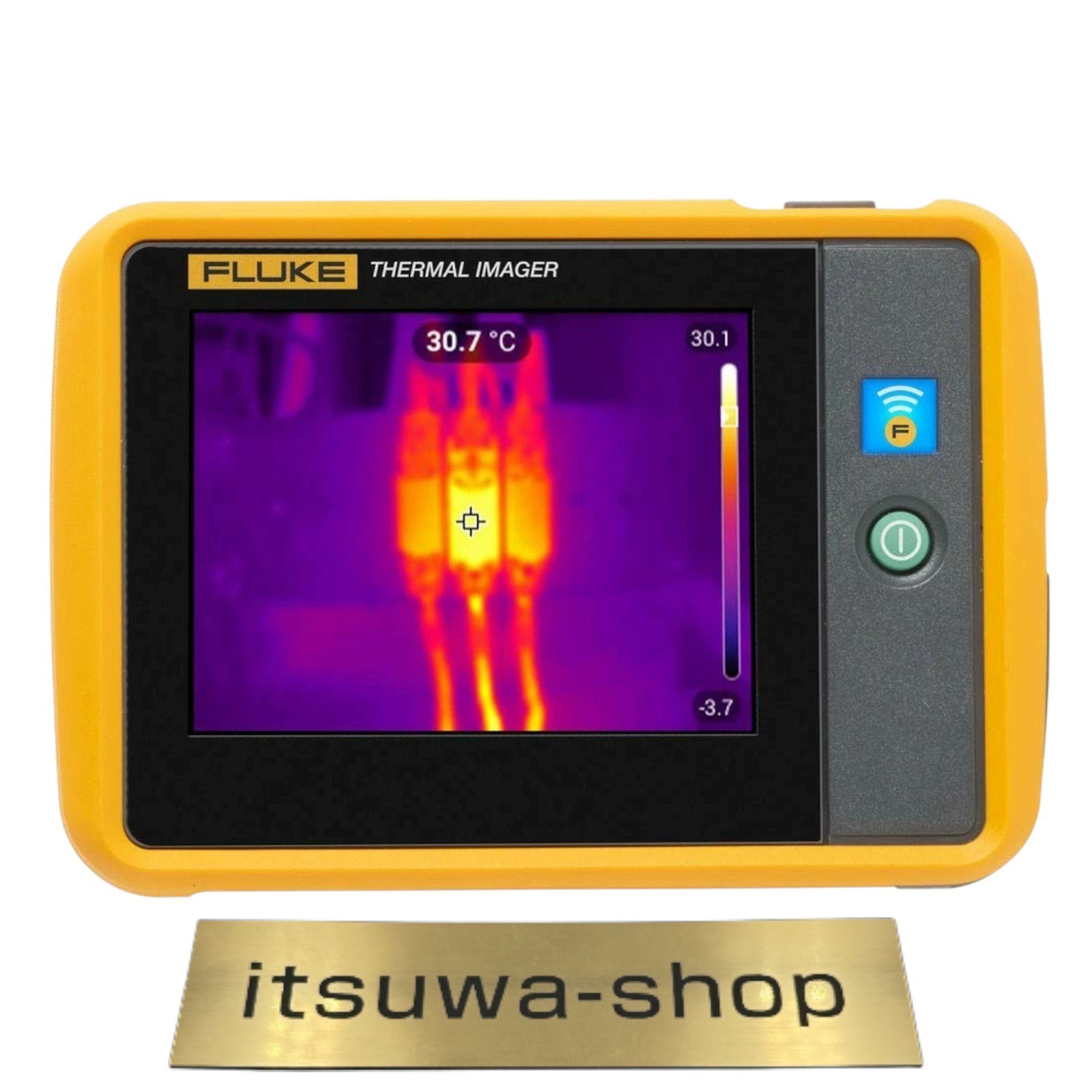

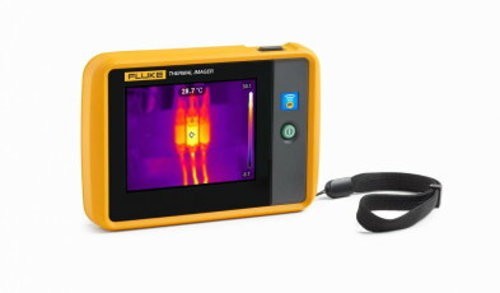

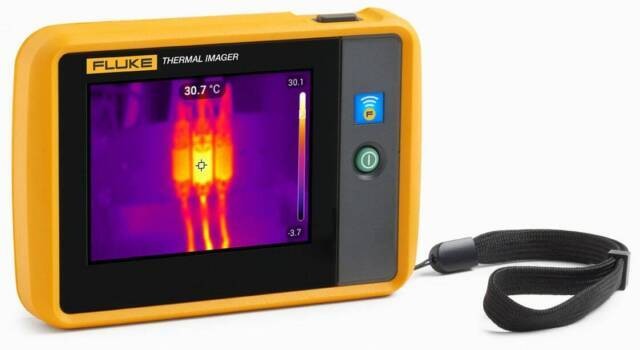

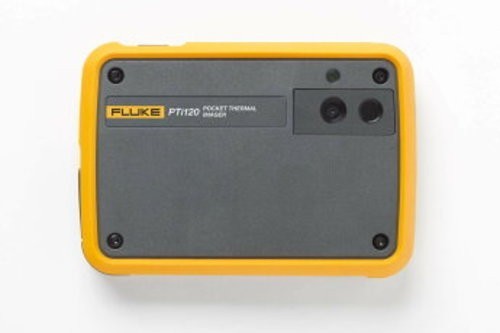

Fluke PTi120 Pocket Thermal Touch Screen Display Camera Portable Size Compact

Brand: Fluke

The new specifications expand the temperature measurement range from -20°C to 400°C, making it suitable for a wide range of applications. Level and span adjustments can now be switched from automatic to manual.

This fully radiometric thermography camera displays measurement data in 120 x 90 pixel (10,800 pixels) infrared resolution for easy troubleshooting. It features a 3.5-inch LCD touchscreen display. Temperature Measurement Range: -20°C to 400°C. Palette: 6 colors.

Enclosure withstands drops up to 1 meter and is IP54 rated.

■ Specifications

■ - Key Features - IFOV (Spatial Resolution): 7.6 mRad

Infrared Resolution: 120 x 90 (10,800 pixels)

Field of View: 50° H x 38° V

Distance-to-Spot Ratio: 130:1

Temperature Measurement Range (not calibrated below -10°C): -20°C to 400°C

Focus System: Fixed focus, minimum focus distance: 22.8 cm

USB: Mini USB for transferring images to a PC. WiFi: Yes. Fluke Connect Instant Upload: Yes*. Connect the camera to your facility's WiFi network and automatically upload images to the Fluke Connect system for viewing on a PC (802.11 bgn, 2.4GHz).

- Image Quality - IR-Fusion Technology: Compatible. Adds the overall visual context to infrared images. AutoBlend Mode: Continuous blending (0% to 100%). Touchscreen Display: 3.5-inch (landscape) 320 x 240 LCD. Rugged, Ergonomic Design: Yes. Thermal Resolution (NETD): 60 mK. Frame Rate: 9 Hz.

- Data Storage and Image Capture - Memory: Built-in flash memory (2 GB or more). Image Capture, Review, and Save: One-handed image capture, review, and saving. Image File Format: Non-radiometric (jpeg) or fully radiometric (.is2). No analysis software is required for non-radiometric (.jpeg) files. Software: Fluke Connect Desktop Software - Full analysis/reporting software with access to the Fluke Connect system. Software export file formats: JPG, IS2. Measurement range: -20°C to 150°C.

- Battery - [Battery (Rechargeable)] Rechargeable lithium-ion battery. Battery life: Over 2 hours continuous (without WiFi). Battery charging time: Less than 1.5 hours. Battery charging system: Micro USB cord (for connecting the device to a PC). [AC powered] Use an AC-USB adapter (sold separately). Not included with product. Power Saving Function: Automatic Shutdown: 5 minutes, 10 minutes, 20 minutes, None.

Temperature Measurement: Temperature Measurement Range (No calibration below -10°C): -20°C to 400°C. Accuracy: Target temperature or 0°C: ±2°C or ±2% accuracy. On-screen Emissivity Compensation: Yes. On-screen Reflected Background Temperature Compensation: Yes. Level/Span Adjustment: Manual/Automatic.

Color Palettes: 6 standard palettes: Ironbow, Blue-Red, High Contrast, Amber, Hot Metal, Grayscale.

General Specifications: Color Alarms (Temperature Alarms): High Temperature, Low Temperature, Isothermal (within range). Measurement Wavelength: 8 to 14 μm (Long Wave). Operating Temperature: -10°C to +50°C. Storage Temperature: -40°C to +70°C (-40°F to 158°F). Relative Humidity: 95°C. %, non-condensing. Center point temperature: Yes. Spot temperature: Hot and cold spot markers. Vibration/shock resistance: 2 g (IEC 68-2-6), 25 g (IEC 68-2-29). Drop test: 1 meter. Dimensions (H x W x L): 8.9 cm x 12.7 cm x 2.5 cm (3.5 in x 5.0 in x 1.0 in). Weight: 0.233 kg.

All my products are 100% Authentic.
